#include <fstream> #include <iomanip> #include <vector> #include <iostream> // // function for making source data of animation // int fileoutput(std::vector<double>& x, int time) { // // the output file // std::fstream outputfile; outputfile.open("outputfile", std::ios::out); // fileopen check if ( ! outputfile.is_open() ){ std::cerr << "Open outputfile error" << std::endl; return EXIT_FAILURE; } // write the movement in the "outputfile" (diagonal movement of a point) else outputfile << x[0] << " " << x[1] << std::endl; outputfile.close(); // // shell script file for renaming the "outputfile" // std::fstream filerenamecom; filerenamecom.open("filerenamecom", std::ios::out); // fileopen check if ( ! filerenamecom.is_open() ){ std::cerr << "Open outputfile error" << std::endl; return EXIT_FAILURE; } else{ filerenamecom << "mv outputfile " << std::setfill('0') << std::setw(5) << std::right << time << std::endl; } filerenamecom.close(); // excute and remove the filerenamecom system("sh ./filerenamecom"); system("rm ./filerenamecom"); return EXIT_SUCCESS; } // // the main funciton // int main(){ std::vector<double> x(2); for(int time=0; time<100; ++time){ x[0] = static_cast<double>(time); x[1] = static_cast<double>(time); fileoutput(x, time); } return EXIT_SUCCESS; }
anime.gp
set term png set title 'time' set size square unset key unset tics set output "time.png" plot [0:100][0:100] "time" pt 7 ps 5 quit

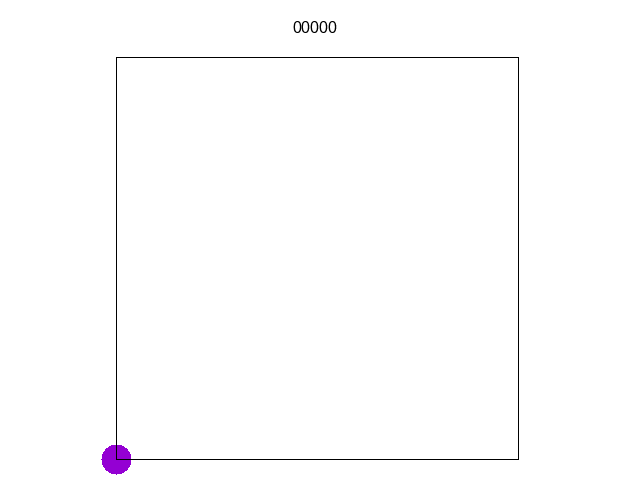

#!/bin/csh -f foreach file ( 0* ) sed 's/time/'${file}'/g' anime.gp > tmp.gp gnuplot tmp.gp rm ${file} end convert -delay 10 -loop 0 *.png anime.gif ffmpeg -i %5d.png -pix_fmt yuv420p anime.mp4 \rm 0*.png tmp.gp
